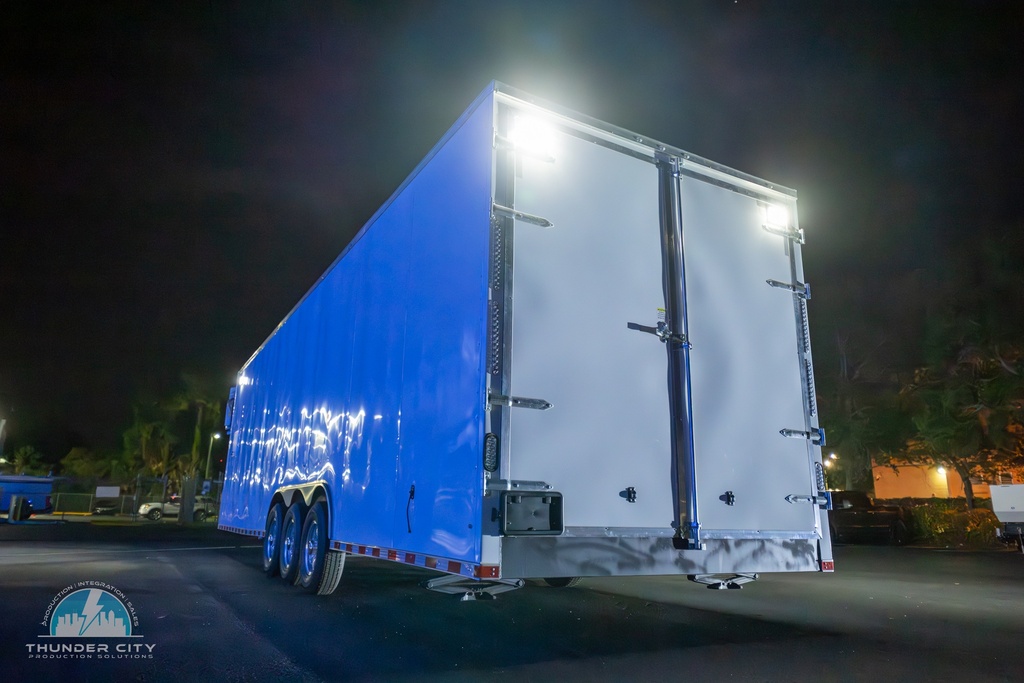

Thunder City Pro BOLT 32

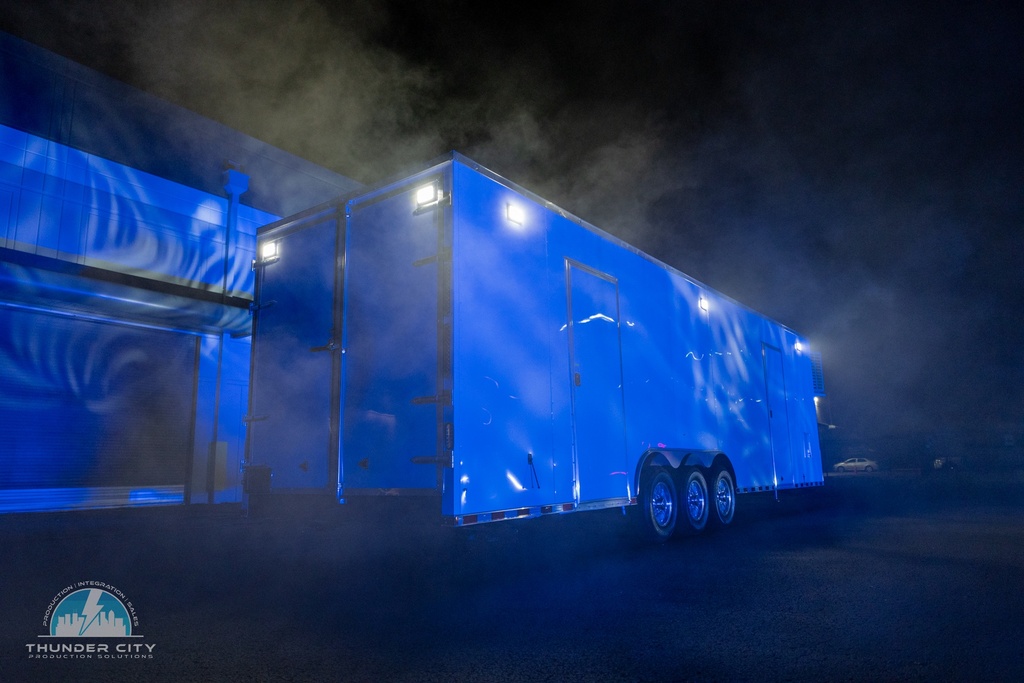

BOLT SERIES 32FT Production Trailer
Our BOLT 32 is the Flagship 32’ foot variant of the BOLT Series MPUs. This unit offers plenty of space for all of your crew, and provides separation between production, audio, and engineering. A dedicated audio booth means silence for your A1, and with the separate engineering space, production will also have separation from all of your equipment noise.
FULL CONFIGURATION OPTIONS LISTED BELOW
10 Seats for:
(1) Producer
(1) Director
(1) TD
(2) Graphics or AP/AD
(2) Replay

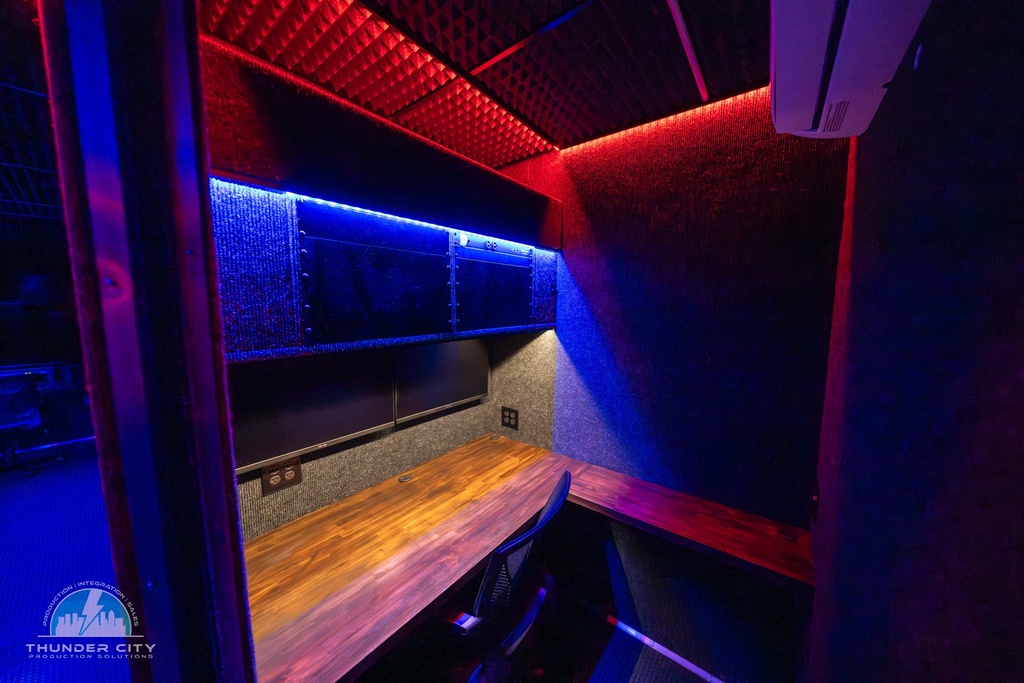

(1) Audio A1 Booth
(1) Video V1/V2
(1) EIC

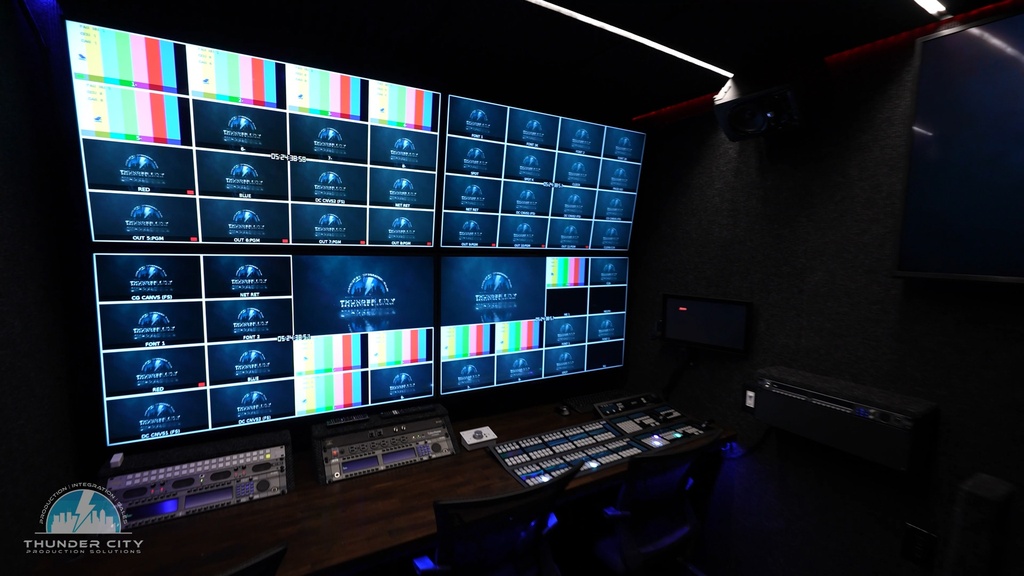

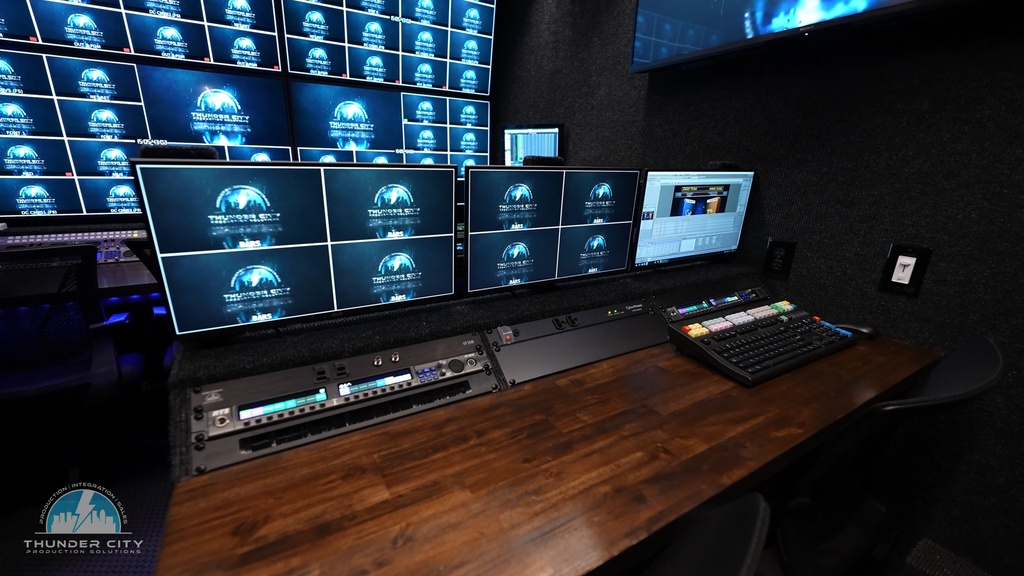

(5) 50" Smart Monitors for Production Wall and Wow Monitor
(15) 22" Thin Computer Monitors
Optional Upgrade to Sony Professional Series OLED or LCR Monitors
(10) Rolling Office Chairs
Espresso Butcher Block Stained Desk Tops
Acoustic Panel Treated Ceiling
12v LED Lighting with PWM Dimmer Switches
Fully redundant lighting System that powers off 120v but uses 12v as backup when power is lost or removed
Low voltage automatic disconnect protects 12v system if lights are accidentally left on. Overridable by user.
Feniex DownLux Strike Lights
Pixel Mappable Bluetooth Controlled RGB Accent Lighting around all internal walls of the unit
Optional Custom Laser Engraving of items inside truck such as switches, rack blanks, etc.

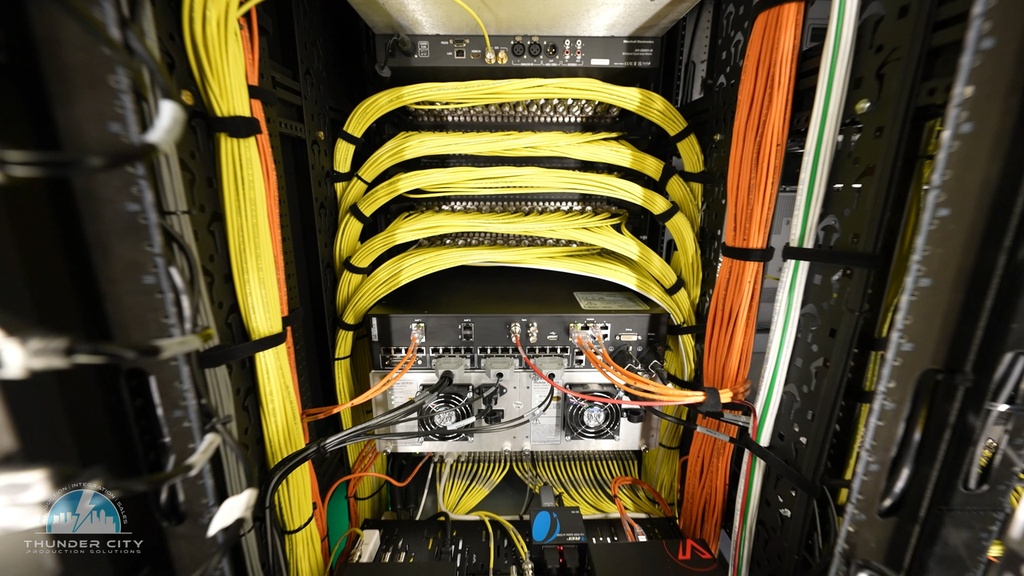

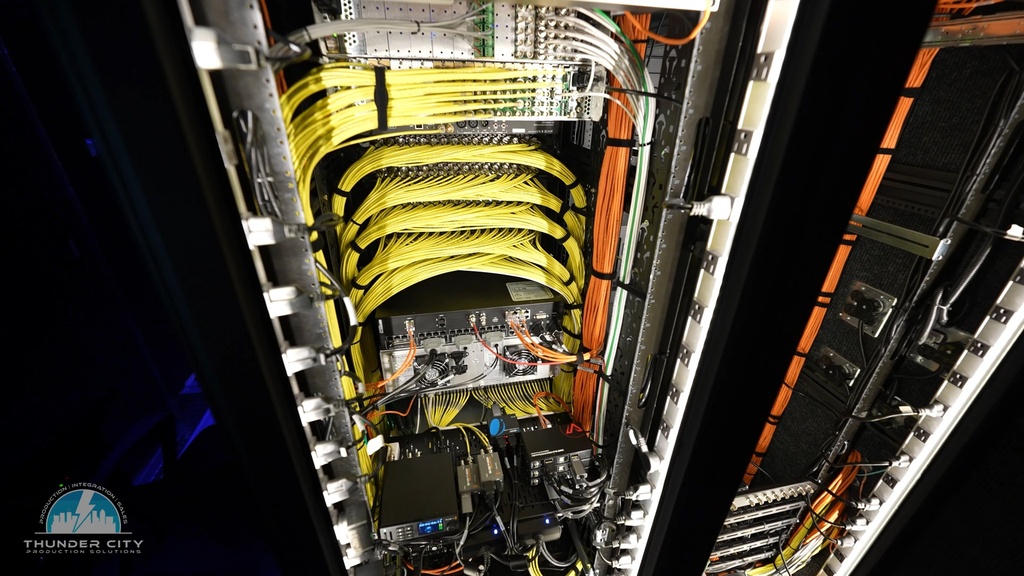

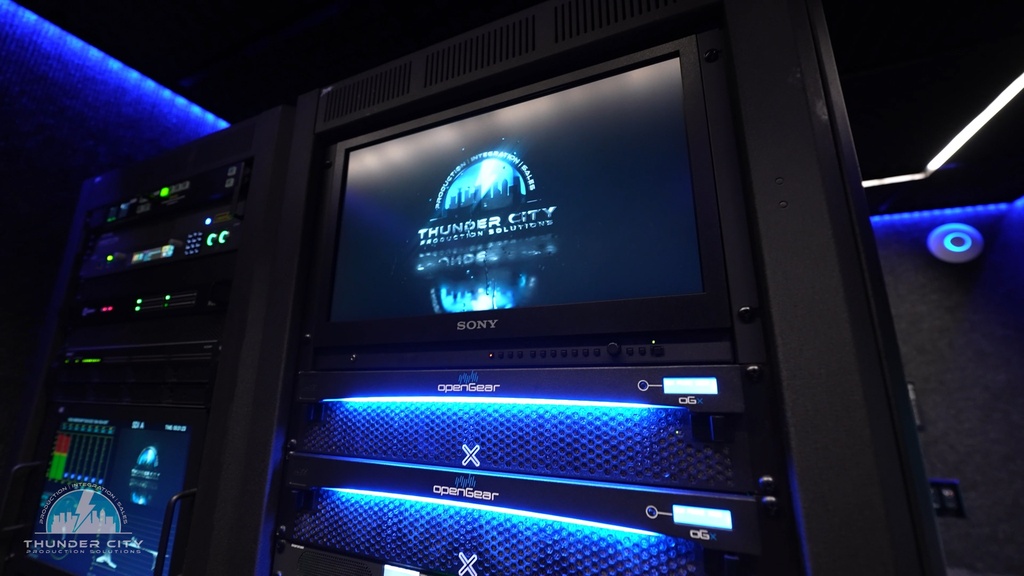

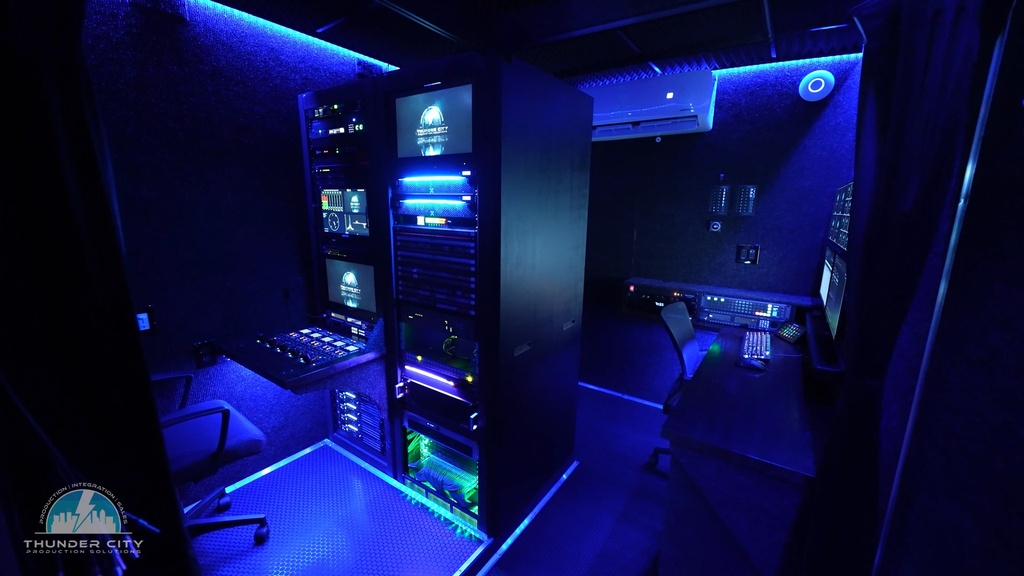

Racks:

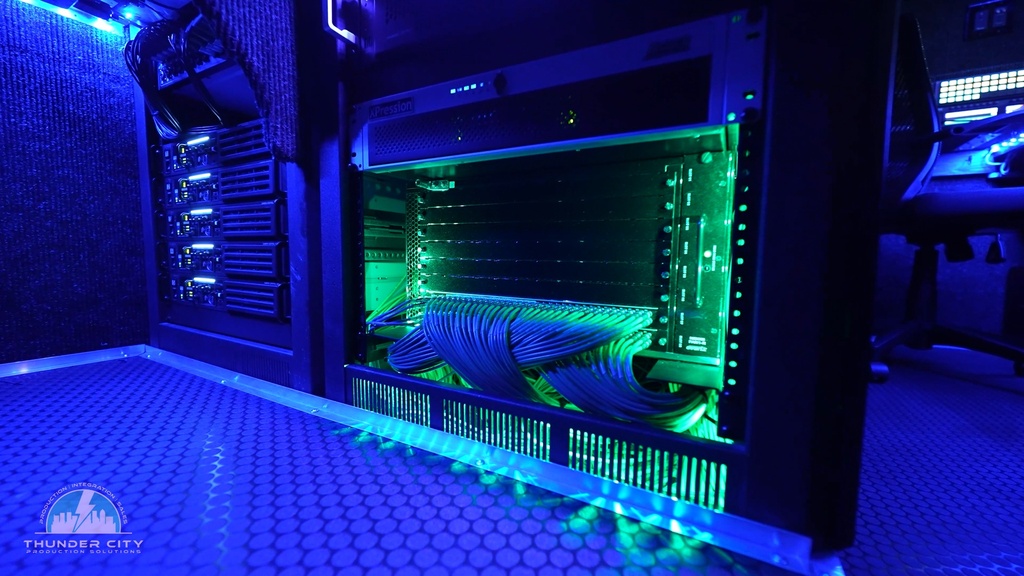

(2) Middle Atlantic 40RU, 32.5" Deep Racks
Fully welded construction for strength
Fixed solid sides for security and to control airflow
24" overall width provides space for side cabling or cooling airflow
Convenient lacing points and slotted rail brackets for cable management
Standard front and rear adjustable 10-32 threaded rack rail with numbered spaces
Extra-wide rack rail features cable pass-throughs to facilitate front-to-rear cabling
Includes standard configurable rear door
Upgradable to Middle Atlantic AV Package with Doors, Lacing Bars, Top Cooling Fans, and additional Cable Management
(3) 4RU Spaces at Production Bench
(3) 3RU Spaces at Graphics Bench

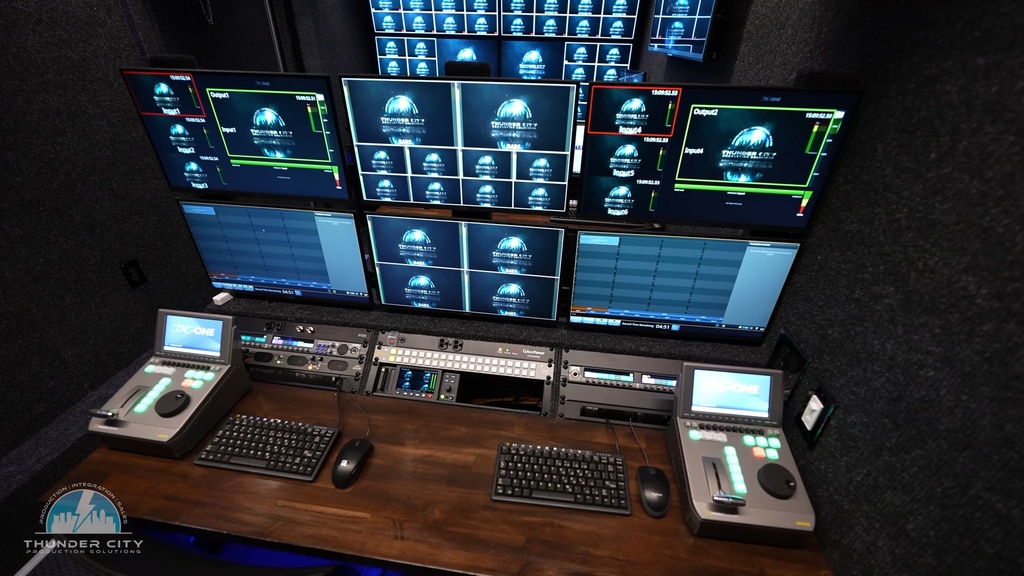

(3) 4RU Spaces at Replay Desk
(2) 8RU Spaces above Audio
(2) 4RU Spaces for EIC/Engineering
V1/Video Racks part of Main Equipment Racks
HVAC:
Quantum Series Mini Split System
240/208V Inverter System gradually ramps compressors up, rather than surging on like traditional A/C units. Inverters allows the HVAC units to never spike past the possible max load, thus allowing minimum stress on the electrical system.
RED/BLUE Redundant System for Production and Engineering
(2) Outdoor Multi Zone Units
Engineering: 24K BTU RED System, 18K BTU BLUE System
Production: 18K BTU RED System, 18K BTU BLUE System
Audio: Non-Redundant 12K BTU System

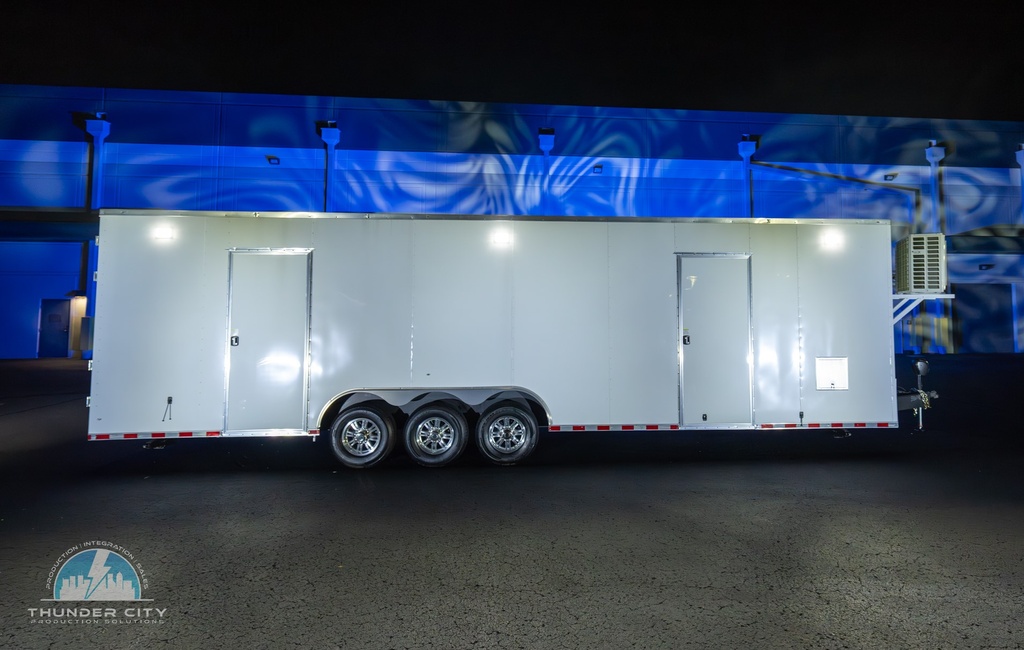

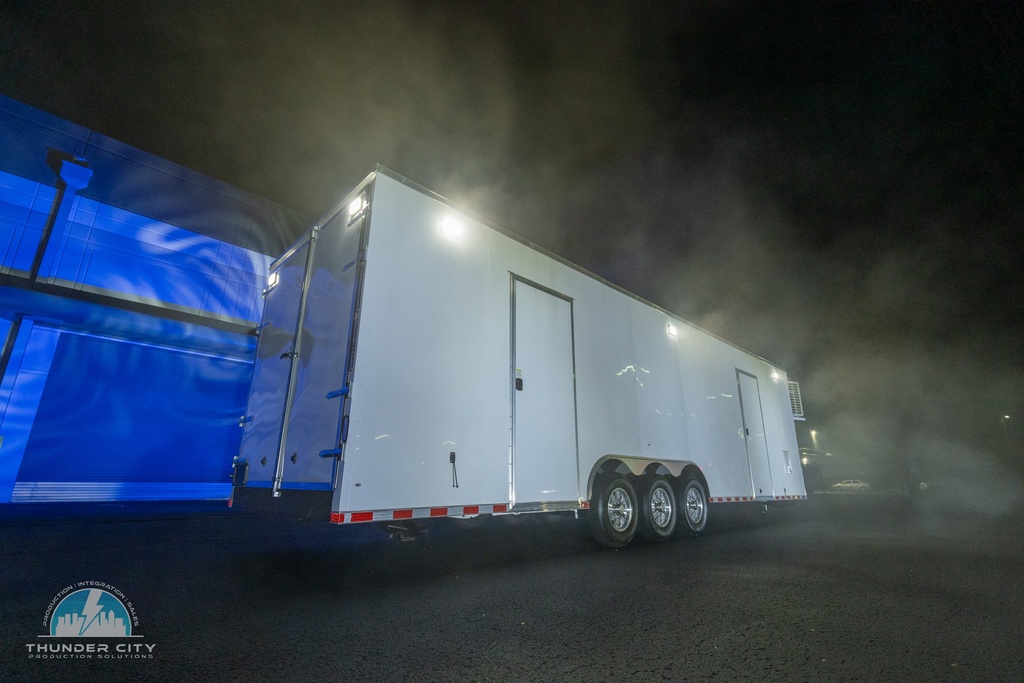

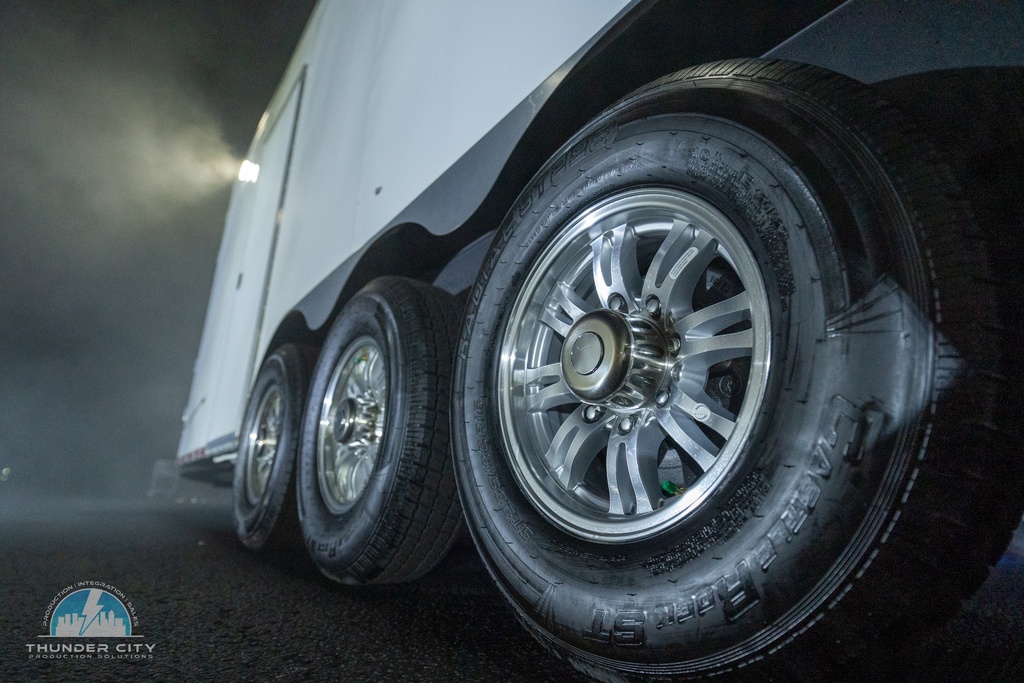

Tri Axle Chassis
_____________________________________________________________________________________________________
Configuration Options Below:
"Rack Ready" for Your Equipment: Your BOLT 32 will be built with the floorplan shown. All racks will be empty and ready for your own equipment/integration. (2) Middle Atlantic Racks
"Rack Ready" with Upgraded Racks: Your BOLT 32 will be built with the floorplan shown. All racks will be empty and ready for your own equipment/integration. (2) Upgraded Middle Atlantic Racks AV Package with Doors, Lacing Bars, Top Cooling Fans, and additional Cable Management.
Custom "Rack Ready" Floor Plan: Thunder City Pro's expert design team will work with you to create a custom floorplan specific to your needs. All racks will be empty and ready for your own equipment.
Custom Turn-Key Design & Integration: Thunder City Pro's expert design team will work with you to design, integrate, and commission a custom Turn-Key mobile unit with equipment you specify, ready to go for your next show. Your BOLT 32 will be built with the floorplan shown or a custom floorplan specific to your needs.
Turn-Key Pre-Designed BOLT: Your BOLT 32 will be built with the floorplan shown, with a pre integrated turn-key production system designed by the experts on the Thunder City Pro team.
This will include:

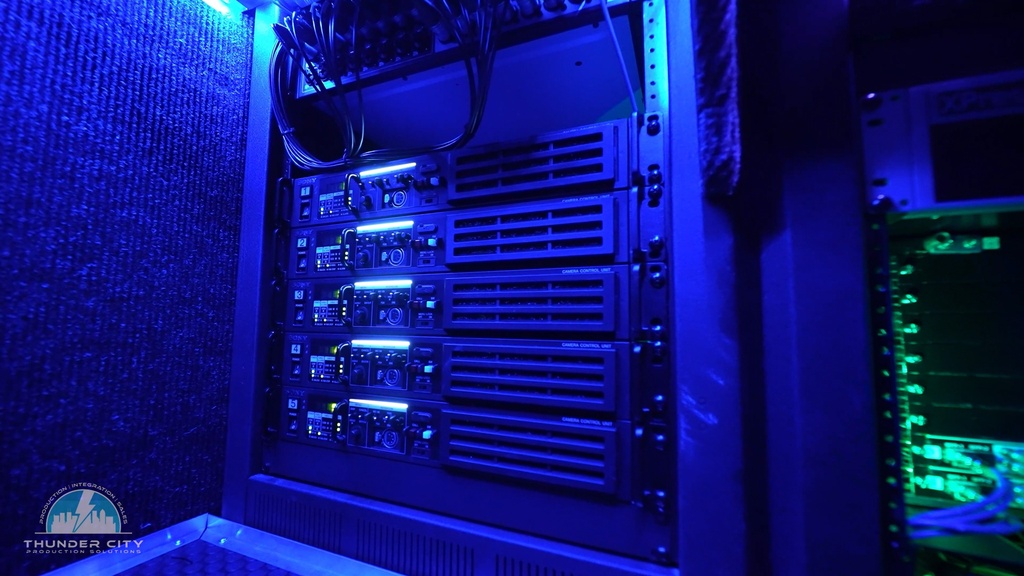

(5) Client optional Sony HDC-3500 OR HXC-FZ90 Full Camera Chains with CCUs and RCPs
Ross Carbonite Ultra w/ TD2S Panel and 4 Multiviewers licensed
Ross Xpression Studio 3 Channel
Evertz NEXX 64x64 Fully Embedding/De-embedding video/audio router with (2) MADI-C SFPs

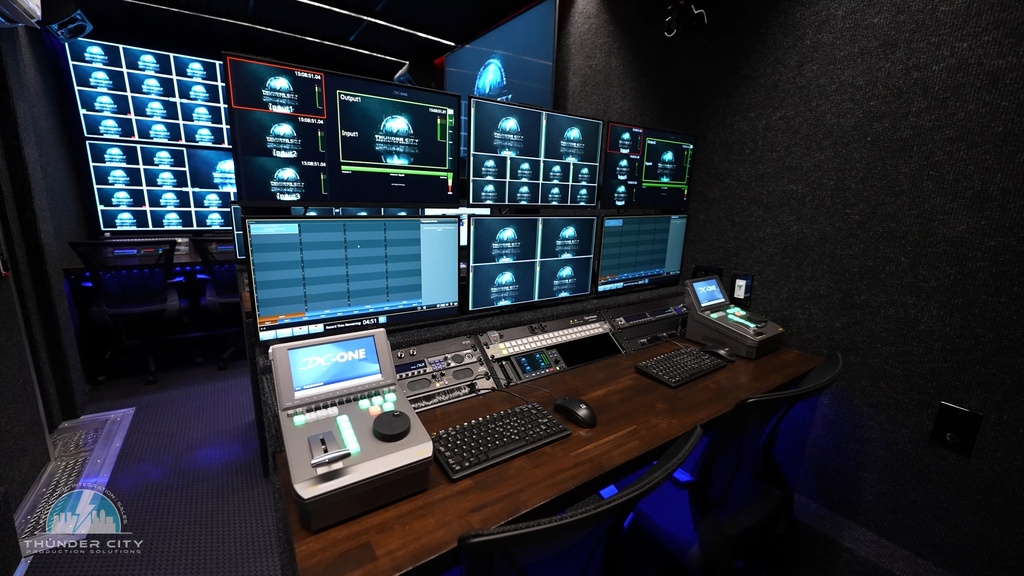

Evertz DC-ONE-LX w/ 2 Operator License, AI SuperMotion (AI HFR), (2) DC-RCP Controllers
Evertz 5700MSC-IP Master Clock w/ 4 Test Signal Generator (TSG) License and GPS Clock Module

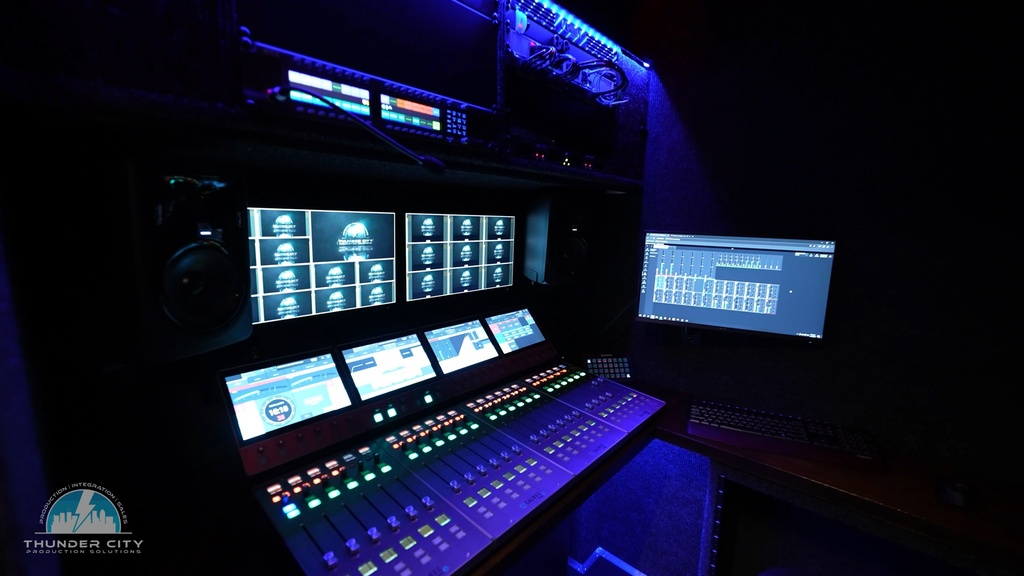

Calrec Type R40 Audio Console w/ 40 DSP Channels, (4) Fader Panels, (4) Large Soft Panels (LSPs)
(3) Studio Technologies Dante announcer boxes with Sennheiser HMD-27 headsets
(1) Full Fiber Booth Kit with PoE switching, video decoding, and 16x8 Analog Dante I/O
(1) Full Sideline Booth Kit with PoE switching, video decoding, and 16x8 Analog Dante I/O
RTS ODIN 32 port digital intercom system. Full Analog, OMNEO (Dante), RVON capabilities.

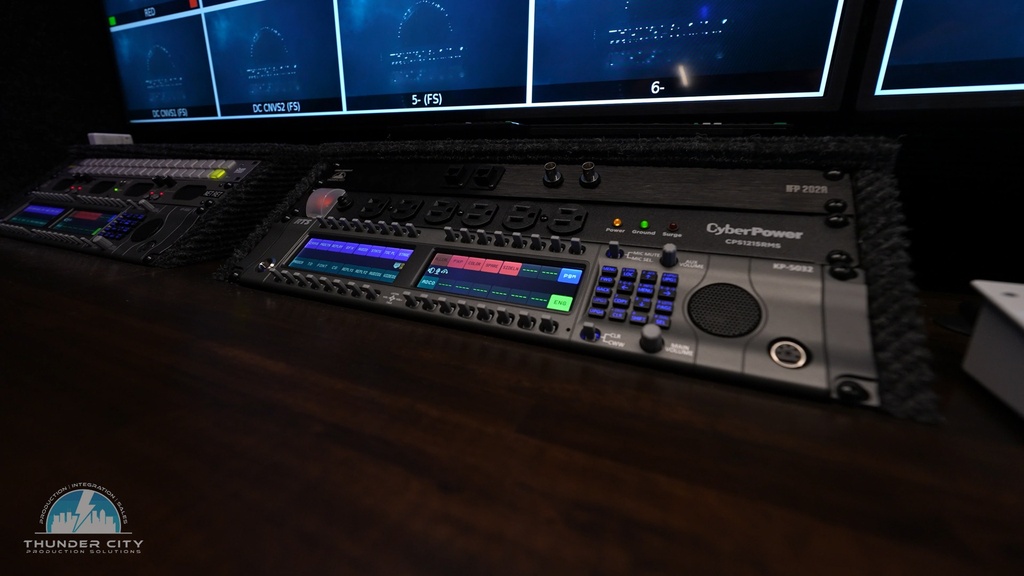

RTS KP-5032, KP-4016, and/or KP-3016 intercom panels for each seat
Kiloview Cradle RU01 with (3) RE-3 Encoding Cards and (1) RD-260 Decoding Cards. SRT and NDI|HX Capable.
NETGEAR AV 4350 series networking infrastructure
Sony Professional Monitors for Video (V1) and Production
