Thunder City Pro BOLT 16
BOLT SERIES 16FT Production Trailer
Our BOLT 16 is the 16’ foot variant of the BOLT Series MPUs. Get creative in this small format production trailer that offers seats for up to 6 crew members. BOLT 16 makes the perfect mini A Unit for streaming, or B Unit for overflow graphics, additional replay, video, transmission, and much more!
***NOTE: PHOTOS FOR BOLT 16 COMING SOON***
FULL CONFIGURATION OPTIONS LISTED BELOW
6 Seats for:
(1) Producer
(1) Director
(1) TD
(1) Graphics or Replay
(1) Audio or Replay
(1) Video / EIC

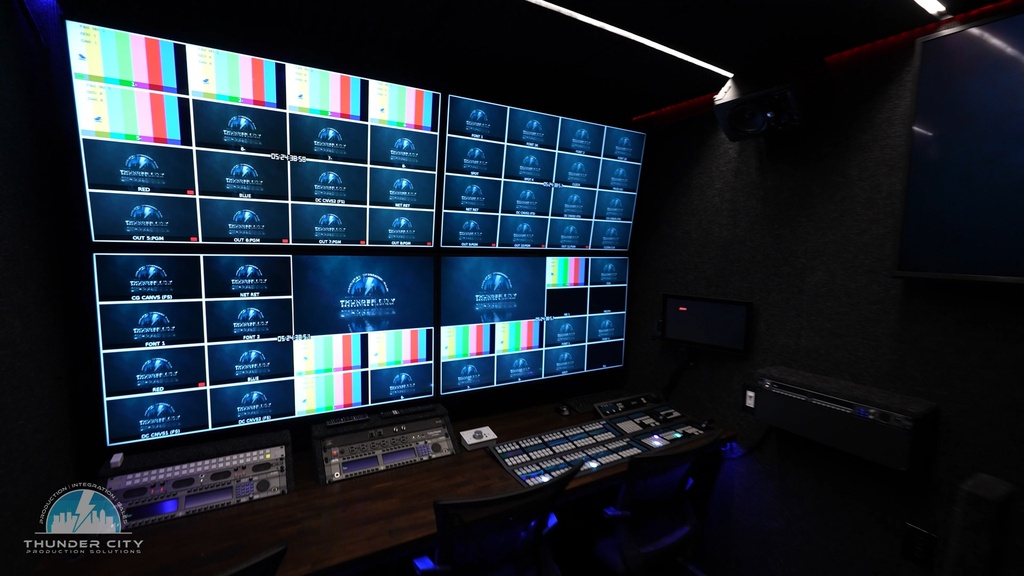

(4) TCL 43" Smart Monitors for Production Wall
(10) 22" Thin Computer Monitors
(1) 18" Thin Computer Monitors
Optional Upgrade to Sony Professional Series OLED or LCR Monitors
(6) Rolling Office Chairs

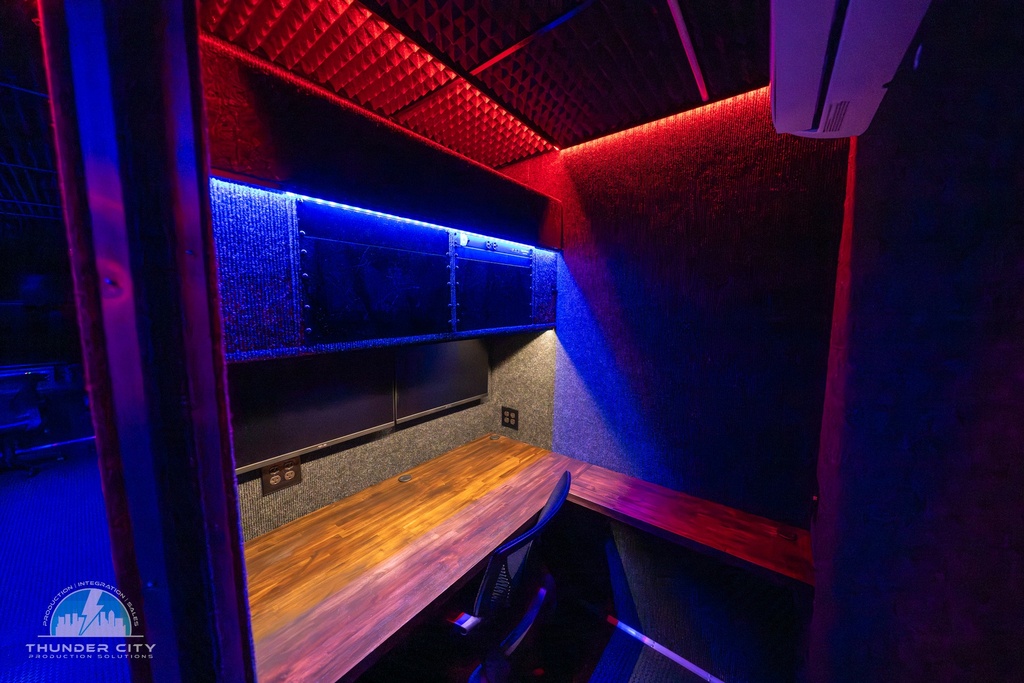

Espresso Butcher Block Stained Desk Tops

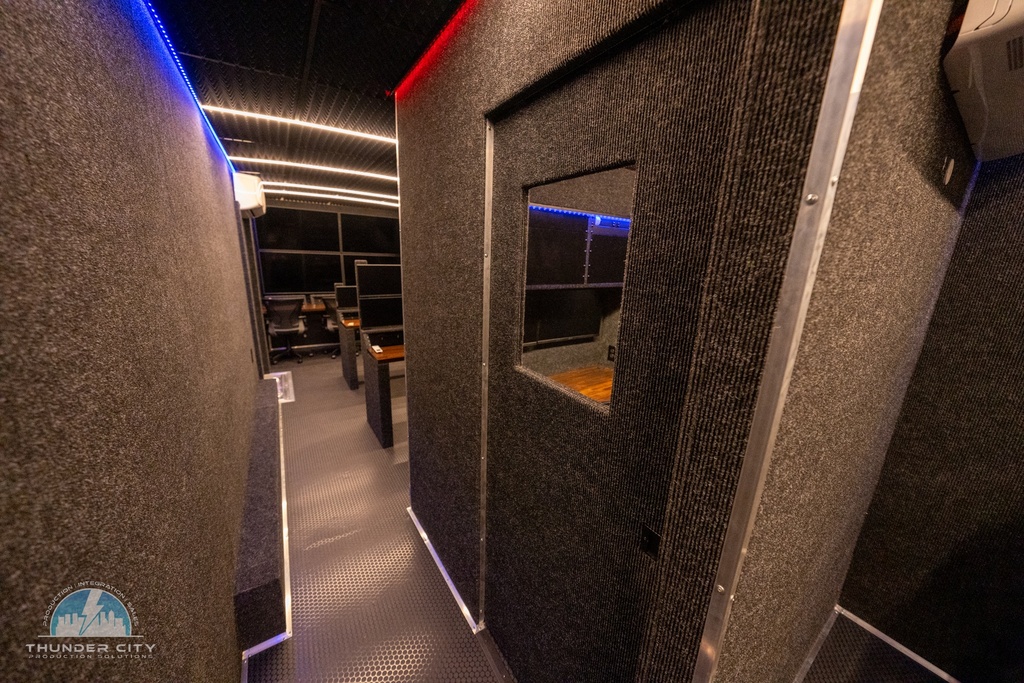

Acoustic Panel Treated Ceiling

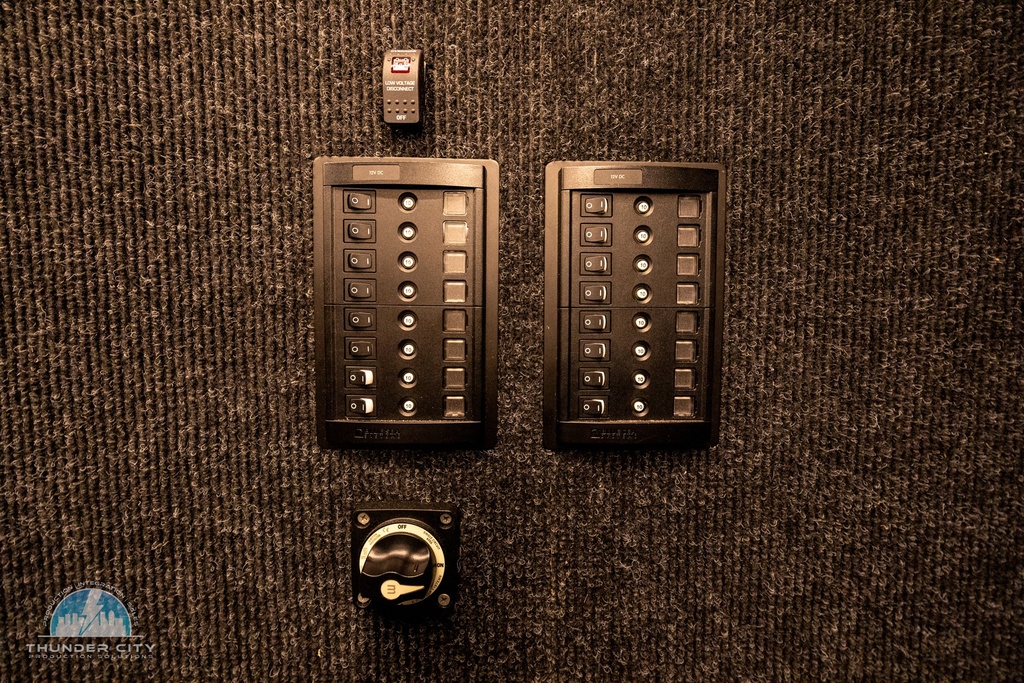

12v LED Lighting with PWM Dimmer Switches
Fully redundant lighting System that powers off 120v but uses 12v as backup when power is lost or removed
Low voltage automatic disconnect protects 12v system if lights are accidentally left on. Overridable by user.
Feniex DownLux Strike Lights
Pixel Mappable Bluetooth Controlled RGB Accent Lighting around all internal walls of the unit
Optional Custom Laser Engraving of items inside truck such as switches, rack blanks, etc.

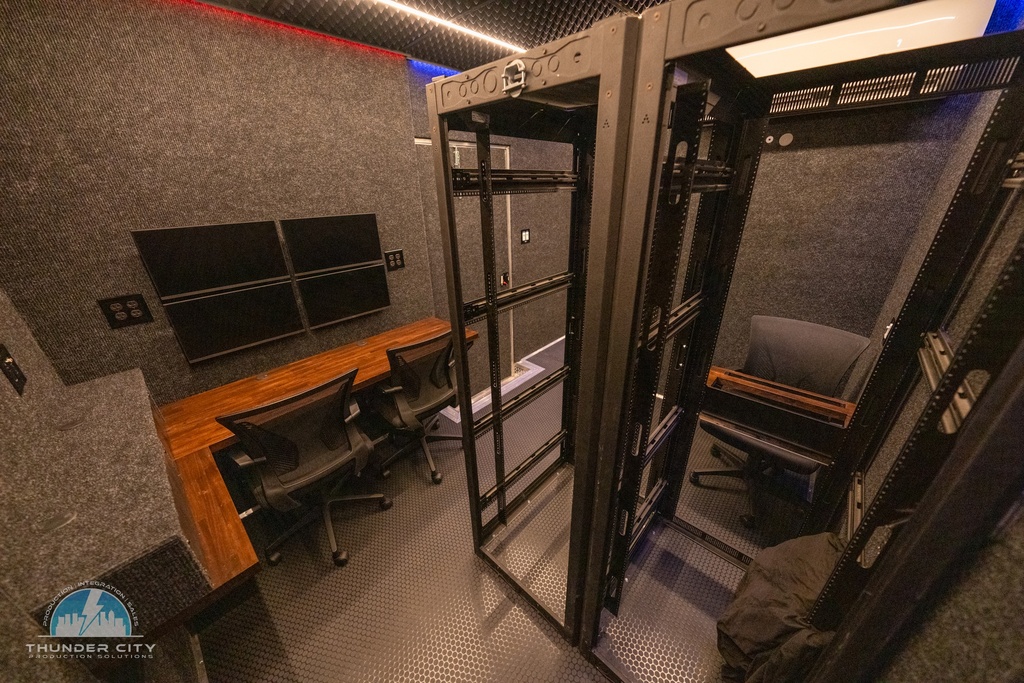

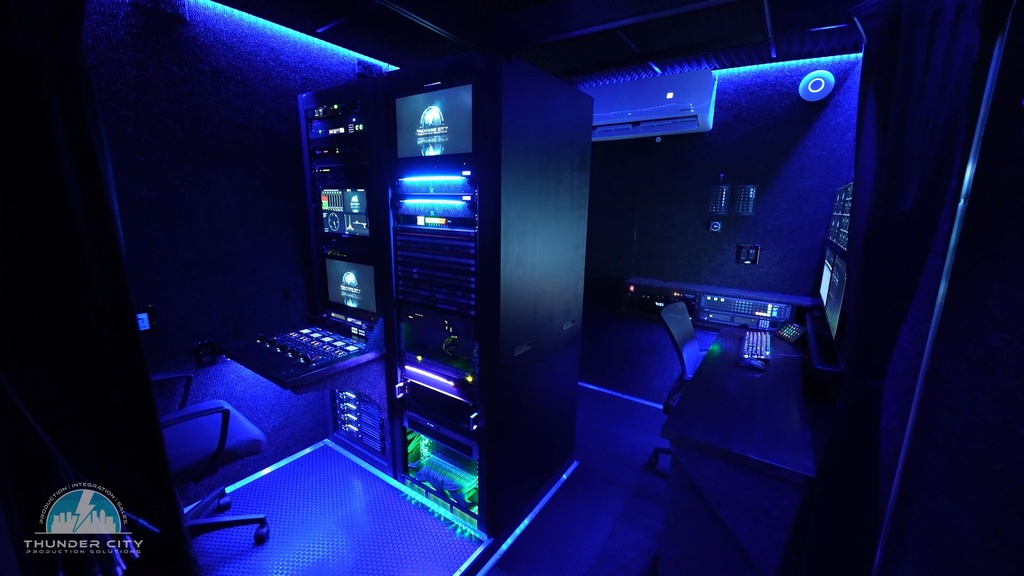

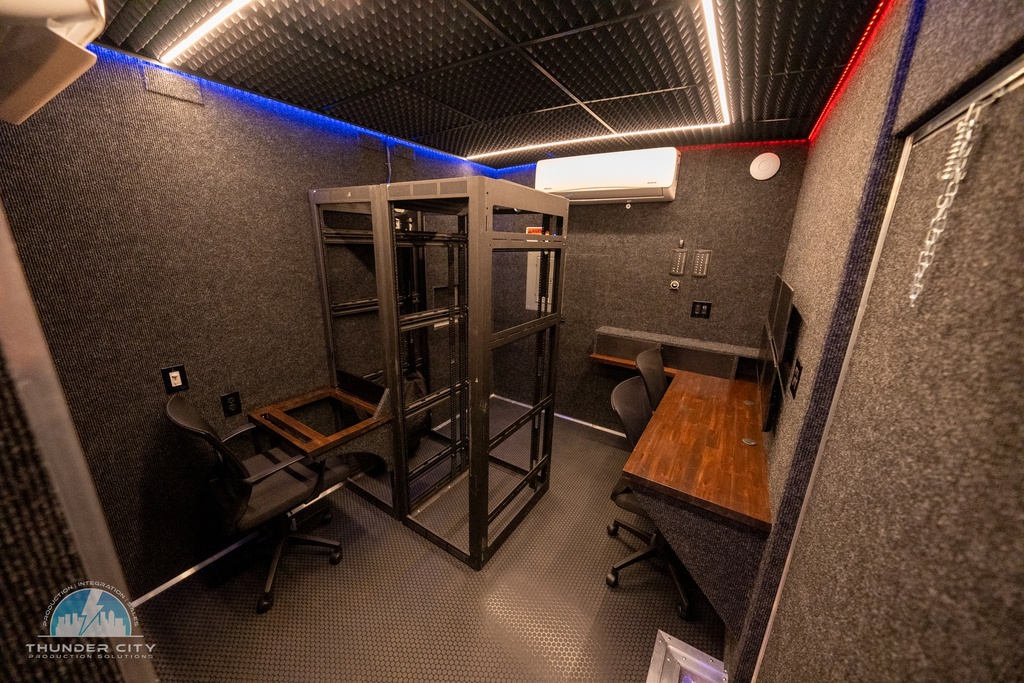

Racks:
(1) Middle Atlantic 40RU, 32.5" Deep Racks
Fully welded construction for strength
Fixed solid sides for security and to control airflow
24" overall width provides space for side cabling or cooling airflow
Convenient lacing points and slotted rail brackets for cable management
Standard front and rear adjustable 10-32 threaded rack rail with numbered spaces
Extra-wide rack rail features cable pass-throughs to facilitate front-to-rear cabling
Includes standard configurable rear door
Upgradable to Middle Atlantic AV Package with Doors, Lacing Bars, Top Cooling Fans, and additional Cable Management
HVAC:
Quantum Series Mini Split System
240/208V Inverter System gradually ramps compressors up, rather than surging on like traditional A/C units. Inverters allows the HVAC units to never spike past the possible max load, thus allowing minimum stress on the electrical system.
RED/BLUE System for Production and Engineering
(2) Outdoor Single Zone Units
Engineering: 18K BTU RED System
Production: 18K BLUE RED System

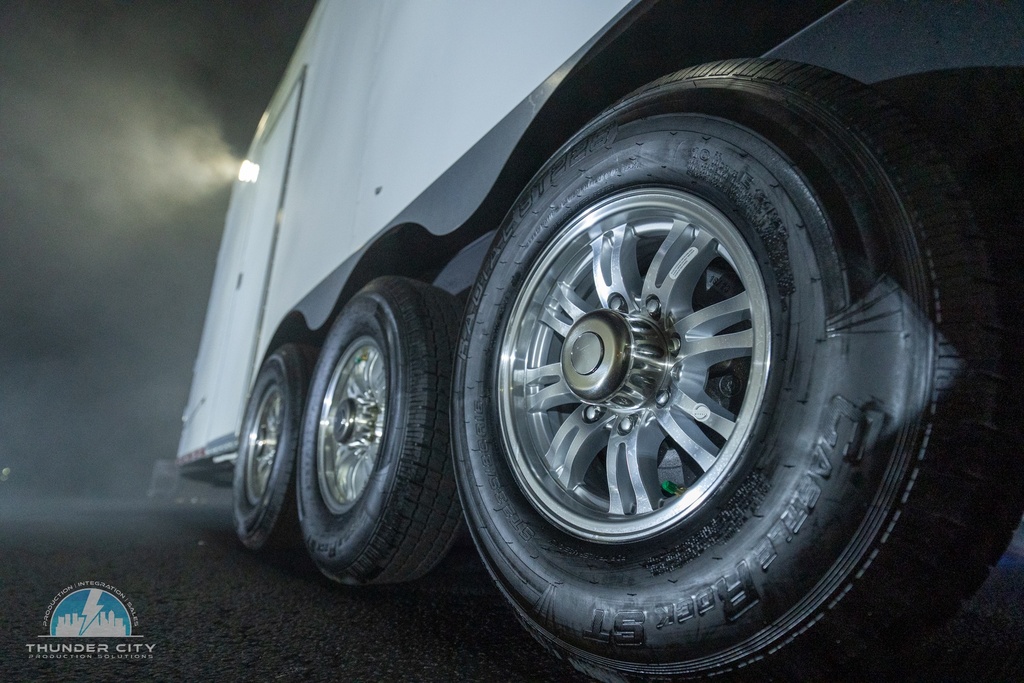

Dual Axle Chassis
_____________________________________________________________________________________________________
Configuration Options Below:

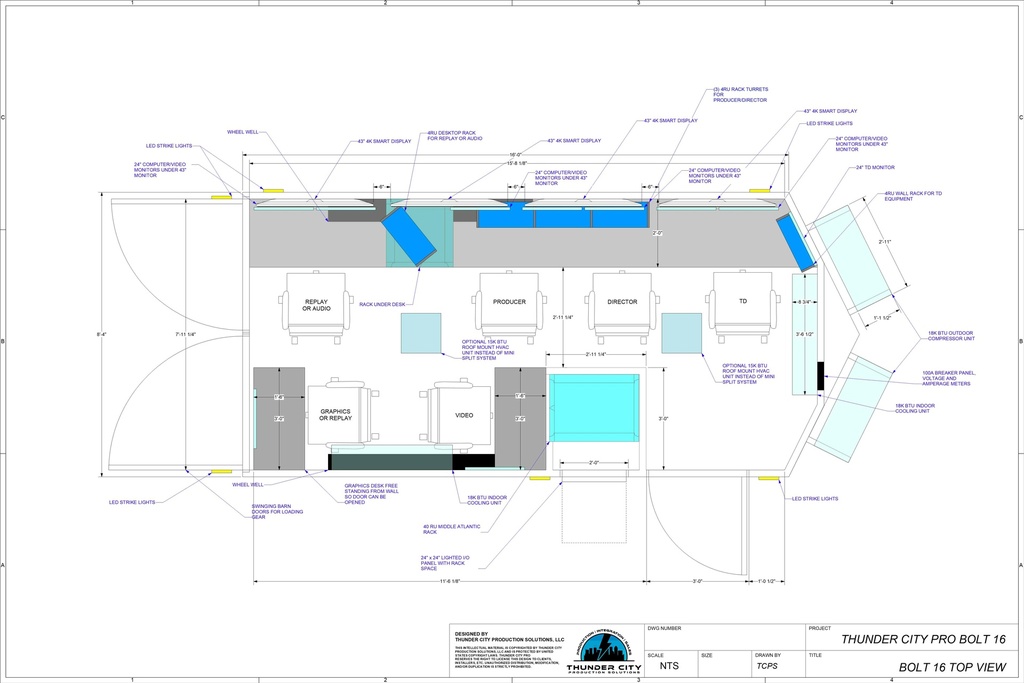

"Rack Ready" for Your Equipment: Your BOLT 16 will be built with the floorplan shown. All racks will be empty and ready for your own equipment/integration. (2) Middle Atlantic Racks
"Rack Ready" with Upgraded Racks: Your BOLT 16 will be built with the floorplan shown. All racks will be empty and ready for your own equipment/integration. (2) Upgraded Middle Atlantic Racks AV Package with Doors, Lacing Bars, Top Cooling Fans, and additional Cable Management.
Custom "Rack Ready" Floor Plan: Thunder City Pro's expert design team will work with you to create a custom floorplan specific to your needs. All racks will be empty and ready for your own equipment.
Custom Turn-Key Design & Integration: Thunder City Pro's expert design team will work with you to design, integrate, and commission a custom Turn-Key mobile unit with equipment you specify, ready to go for your next show. Your BOLT 16 will be built with the floorplan shown or a custom floorplan specific to your needs.
